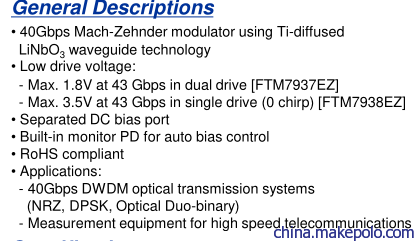

40Gbps Mach-Zehnder modulator using Ti-diffused
LiNbO 3 waveguide technology
• Low drive voltage:
- Max. 1.8V at 43 Gbps in dual drive [FTM7937EZ]
- Max. 3.5V at 43 Gbps in single drive (0 chirp) [FTM7938EZ]
• Separated DC bias port
• Built-in monitor PD for auto bias control
• RoHS compliant
• Applications:
- 40Gbps DWDM optical transmission systems
(NRZ, DPSK, Optical Duo-binary)
- Measurement equipment for high speed telecommunications
