技术参数

Specification

Units

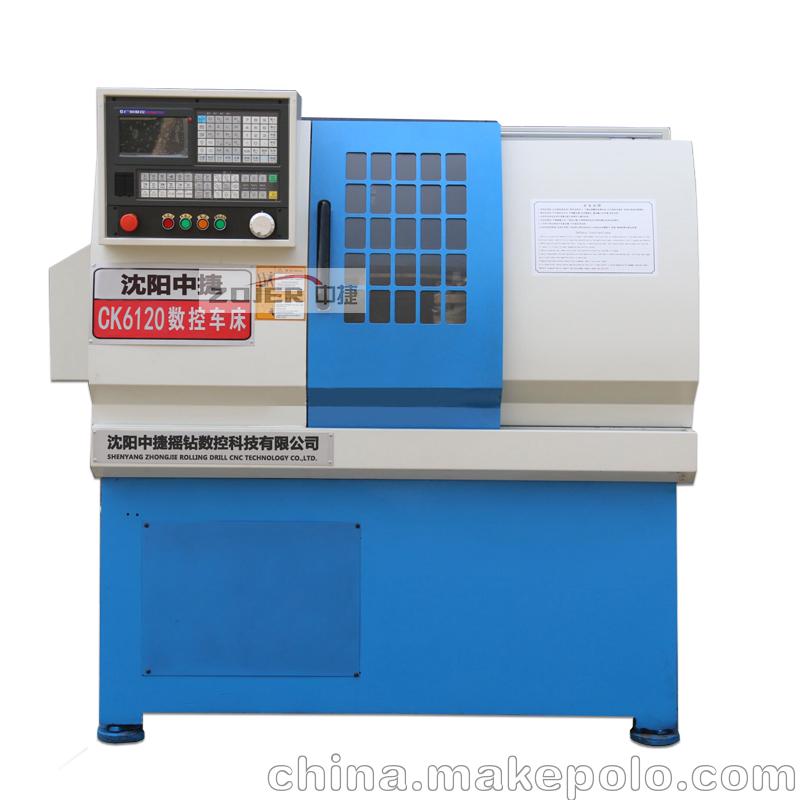

CK6120

CK6125

床身最大回转直径

Max. gyration diameter of  bed body

mm

φ200

φ250

托板最大回转直径

Max. gyration diameter of pallet

mm

φ80

φ125

最大加工长度

Max. machining length

mm

200

200

X/Y轴最小位移单位

X/Y axis minimum displacement unit

mm

0.001

0.001

主轴通孔直径

Spindle hole diameter

mm

φ37

φ50

拉管通孔直径

Stay tube  hole diameter

mm

φ32

φ41

主轴极限转速

Principal axis limit speed

rpm

150-2500

1500-2500

工作夹紧方式

Working clamping mode

气动活灵式夹头夹紧Pneumatic flexible type collet

clamping

气动活灵式夹头夹紧

Pneumatic flexible type collet

clamping

X/Z轴

X/Z axis

N. m

伺服（servo）4/4

伺服（servo）4/4

X/Z轴快移速度

X/Z axis fast moving speed

m/min

5/10

5/10

刀架型式

Type of tool carriage

排刀架(Row knife rack)

排刀架(Row knife rack)

刀架（型号/数量）

Tool carrier (type / quantity)

mm

4件单面排刀架(4 piece of single row knife rack)

2件双面排刀架（2 piece of double face row knife rack）.1件单面呆刀架(1 pieces of one side  knife rack)

刀杆尺寸

Cutter bar size

mm

16x16

16x16

导轨形式

Guide rail form

双山导轨(Double mountain  lead rail)

双山导轨(Double mountain  lead rail)

电机功率（变频）

Motor power (frequency conversion)

KW

3

3

变频器

Frequency converter

KW

3.7

3.7

机床净重

Net weight of machine tool

Kg

800

800

机床包装尺寸

Packing size of machine tool

mm

1420x1120x1750

1420x1120x1750
