符合ASTM D3359标准，百格测试胶带

Intertape polymer group

product code 51596

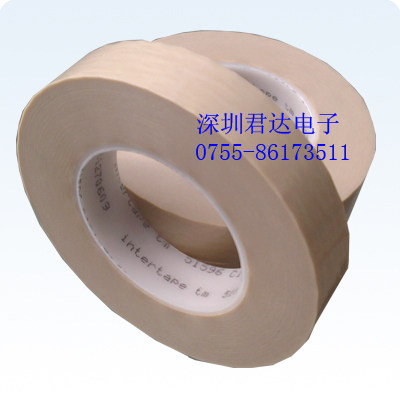

IPG#51596 Polyester film / polyester non-woven electrical tape

product description:

the combination of polyester film and polyester non woven materials can be used on a wide variety of electrical applications. multi purpose tape for applications which require a combination tear and puncture resistance, hign tensile strength with elongation and excellent dielectric strength.

applications:

Ideal for high volume coil wrapping applications, ground and barrier insulation, outer protective wrap for bobbin applications, coil end insulation anchoring leads and terminal board pads.

technical data:

backing thickness: 3.5mil (0.089mm)

total thickness: 5.0mil (0.127mm)

temp / class: 130C /B

tensile strength: 31.5 lbs/in (138N/25mm)

elongation: 60%

electrolytic: 1.0 direct / A, 1* corrosion

flammability: BU 2*

UL File#: E20780

adhesive: rubber thermosetting

dielectric strength: 4200V

insulation resistance: 100000 megohms

adhesion to steel: 60 oz/in (16.4N/25mm)

storage stability: ecellent

solvent resistance: excellent

moisture resistance: excellent

CAS File#: LR94980
