深圳市君达电子有限公司 www.kingdays.com

0755-86173511  86173512    13923720372  13691895131

​​

​

白色、黑色。可按您要求随时裁切，但裁切后无法撤单哟。请提供精准宽度慎重拍下。

拍时请注明宽度与颜色

不足￥1000需增加5mm上机修边损耗

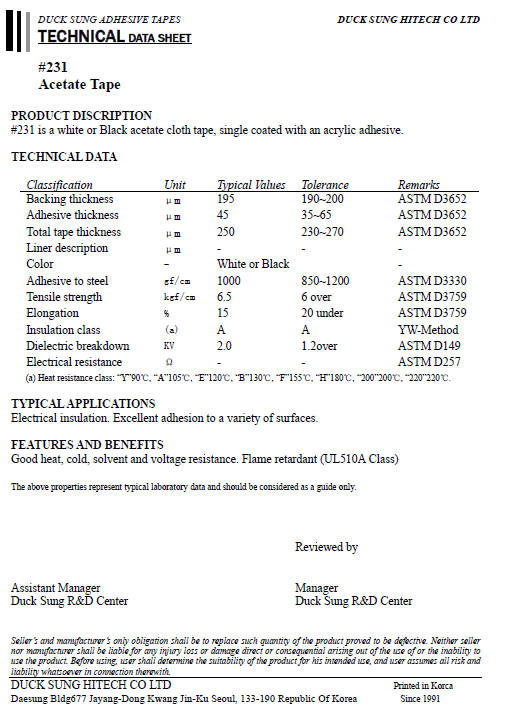

DUCK SUNG HITECH CO LTD

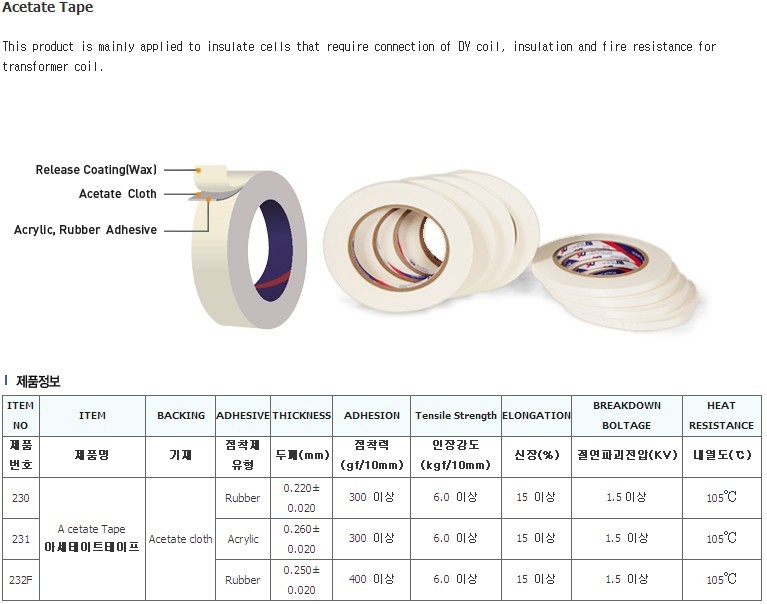

#231 Acetate Tape  PRODUCT DISCRIPTION #231 is a white or Black acetate cloth tape, single coated with an acrylic adhesive.

TECHNICAL DATA  Classification Unit Typical Values Tolerance Remarks Backing thickness μm 195 190~200 ASTM D3652 Adhesive thickness μm 45 35~65 ASTM D3652 Total tape thickness μm 250 230~270 ASTM D3652 Liner description μm - - - Color - White or Black - Adhesive to steel gf/cm 1000 850~1200 ASTM D3330 Tensile strength kgf/cm 6.5 6 over ASTM D3759 Elongation % 15 20 under ASTM D3759 Insulation class (a) A A YW-Method Dielectric breakdown KV 2.0 1.2over ASTM D149 Electrical resistance Ω - - ASTM D257 (a) Heat resistance class: “Y”90℃, “A”105℃, “E”120℃, “B”130℃, “F”155℃, “H”180℃, “200”200℃, “220”220℃.  TYPICAL APPLICATIONS Electrical insulation. Excellent adhesion to a variety of surfaces.  FEATURES AND BENEFITS Good heat, cold, solvent and voltage resistance. Flame retardant (UL510A Class)  The above properties represent typical laboratory data and should be considered as a guide only.

快递以快递公司收费为准，中通、优速、顺丰。广东省内首重10～13不等，续重1/KG。省外15～23不等，续重6～10/kg不等。
