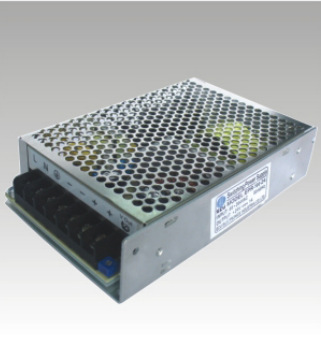

R系列150W开关电源
详细介绍：
Approvals: CE,TUVmark,CB,CCCUL pending Size(L×W×H):199mm×98mm×38mm
产品特性:● 全范围电压输入 ● 通电指示灯 ● 过载/过压/短路保护 ● 小体积,高效率,高可靠性 ● 100%满载老化测试 ● 1`3年质保 |
Product features:● Universal AC input/ full range● Power on indication● Protections：Overload /Over voltage /Short circuit ● Compact, high reliability, high efficiency● 100% full load burn-in test ● 1`3 years warranty | ||
技术参数： | Specifications: | ||
输入电压 输入频率冲击电流维持时间过载保护过压保护运行温度安全标准EMC标准MTBF绝缘标准
重量 | 88~132VAC/176~264 VAC 拨动开关选择输入 47~63Hz35A@230VAC, 全载冷态 20ms@230 VAC 全载 110%- 150%110%-145% -20~ 70℃,实据降额曲线 UL60950-1 EN55022 class B 205 Hrs at 25℃ I/P-O/P:3KVI/P-FG: 1.5KV,1minO/P-FG:0.5KV ,1min0.7Kg/pcs | AC input voltage Input frequencyInrush currentHold up timeOverload protectionOver voltage protectionOperating temperature Safety standardEMC standardMTBFWithstand voltage
Weight | 88-132VAC/176-264 VAC selected by switch47~63Hz35A @230VAC, full load cold start20ms@230 VAC full load110%- 150%110%-145%-20 ~ 70℃ refer to output derating curve UL60950-1EN55022 class B205 Hrs at 25℃ I/P-O/P:3KV,1minI/P-FG:1.5KV,1minO/P-FG:0.5KV ,1min0.7Kg/pcs |
P/N产品型号 | Output输出 | Tol.容差 | R&N纹波&噪声 | Effi.效率 | Load Regulation负载调整率 | DC adjustment rangeDC可调范围 |
EPR-150-5 | 5V,26A | ±3% | 80mV | 77% | ±2% | 4.75~5.25V |
EPR-150-12 | 12V,12.5A | ±3% | 120mV | 83% | ±2% | 10.8~13.2V |
EPR-150-15 | 15V,10A | ±3% | 120mV | 83% | ±2% | 13.5~16.5V |
EPR-150-24 | 24V,6.5A | ±3% | 120mV | 86% | ±2% | 21.6 V~26.4V |
EPR-150-36 | 36V,4.1A | ±3% | 200mV | 86% | ±2% | 32.4 V~39.6V |
EPR-150-48 | 48V,3.3A | ±3% | 200mV | 87% | ±2% | 43.2~52.8V |
