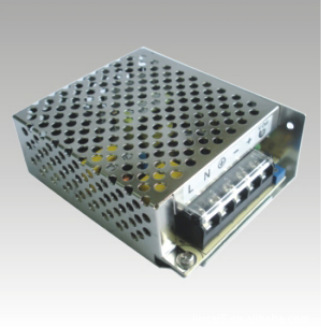

SR系列120W开关电源
详细介绍：
Approvals: CE,UL pending
Size(L×W×H): 164mm×97mm×38mm
| 产品特性:● 全范围AC输入 ● 通电指示灯 ● 过载/过压/短路保护 ● 小体积,高效率,高可靠性 ● 可配合导轨安装 ● 100%满载老化测试 ● 1~3年质保 | Product features:● Universal AC input/ full range● Power on indication● Protections：Overload /Over voltage /Short circuit ● Compact,, high reliability, high efficiency● Din mounted available ● 100% full load burn-in test● 1~3 years warranty | ||
技术参数： | Specifications: | ||
AC输入电压 输入频率冲击电流维持时间过载保护过压保护运行温度安全标准EMC标准MTBF绝缘标准 重 量 | 88~264VAC常规100-240VAC47~63Hz35A@230VAC, 全载冷态 20ms@230 VAC 全载 110%- 150%110%-145%-20 ~ 70℃,实据降额曲线 UL60950-1EN55022 class B205 Hrs at 25℃ I/P-O/P:3KV, 1minI/P-FG:1.5KV,1min0.6Kg/pcs | AC input voltage Input frequencyInrush currentHold up timeOverload protectionOver voltage protectionOperating temperature Safety standardEMC standardMTBFWithstand voltage Weight | 88~264VACNominal 100-240VAC47~63Hz35A @230VAC full load cold start20ms@230 VAC full load110%- 150%110%-145%-20 ~ 70℃refer to output derating curve UL60950-1EN55022 class B205 Hrs at 25℃I/P-O/P:3KV, 1minI/P-FG:1.5KV,1min0.6Kg/pcs |
P/N产品型号 | Output输出 | Tol.容差 | R&N纹波&噪声 | Effi.效率 | Load Regulation负载调整率 | DC adjustment rangeDC可调范围 |
EPR-100-5 | 5V,14A | ±3% | 80mV | 76% | ±2% | 4.75~5.25V |
EPR-100-12 | 12V,8.5A | ±3% | 120mV | 81% | ±2% | 10.8~13.2V |
EPR-100-24 | 24V,4.5A | ±3% | 120mV | 84% | ±2% | 21.6V~26.4V |
EPR-100-48 | 48V,2.3A | ±3% | 200mV | 84% | ±2% | 43.2~52.8V |
