供应NORELEM进口用于精密孔定位零件NLM02020

Material:

Tool steel

Surface finish:

Hardened and ground,

support surface without centring

Sample order:

nlm 02020-212

Note:

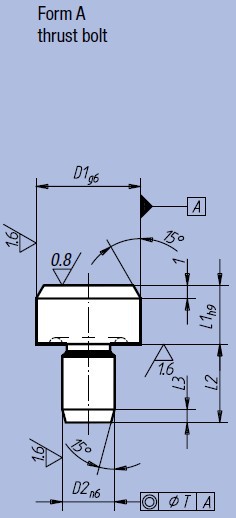

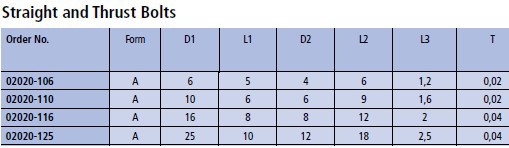

Thrust Bolts form A serve as a mount

for workpieces and fixtures.

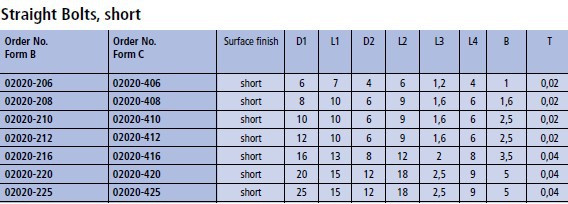

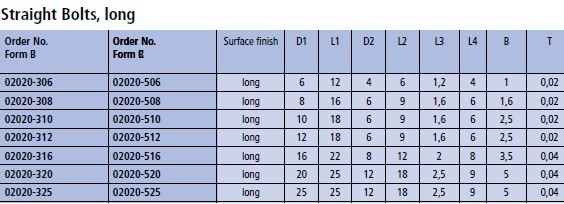

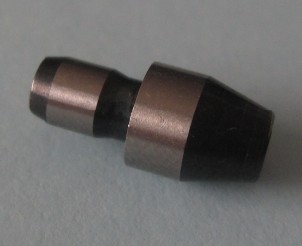

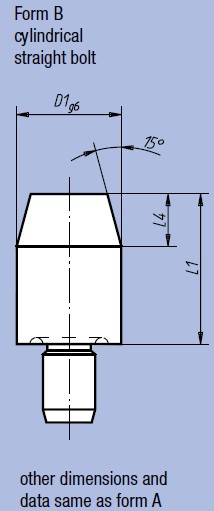

Straight Bolts form B serve to position

workpieces and fixture parts in holes

with locating dimensions.

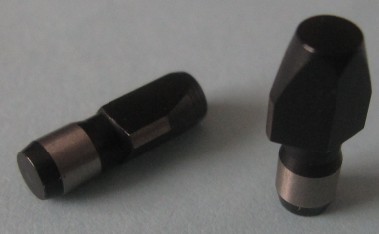

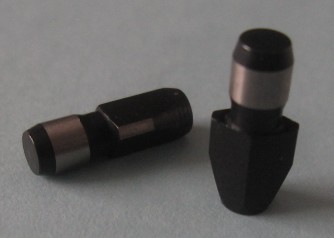

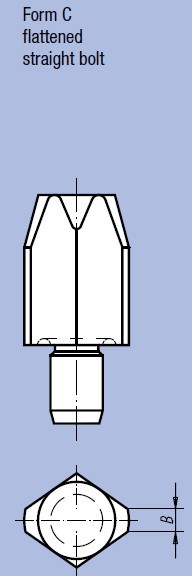

The flattened form C can be used to

bridge tolerances in hole spacing or to

secure the part to be positioned in one

direction only.

Form A and B can also be used as

hardened stop and as foot for fixtures.

For similar bolts see 03120, 03130,

03140 and 03150.
