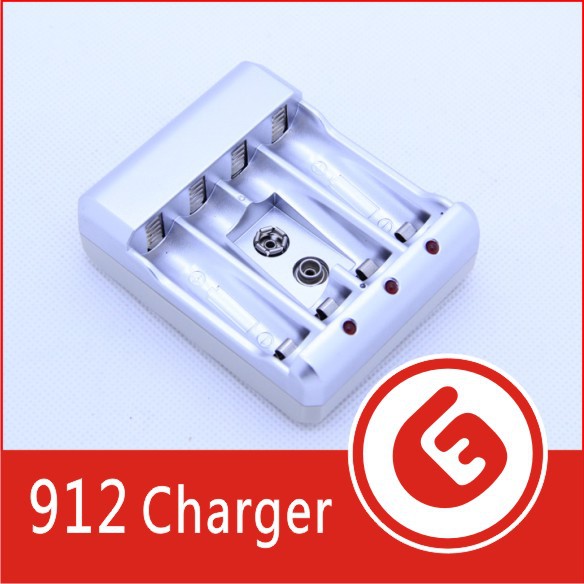

GLY-912
恒时控制技术
产品性能
本充电器可充4个AA/AAA和1个9V（6F22）镍氢或镍镉可充电池, LED充电指示 ；恒压小电流充电模式，定时关断方式，将提高电池的使用寿命；AA/AAA电池采用两粒电池串联充电方式，严格时间控制，以确保使用安全；全电压输入，全球适用。
产品参数
输入： 100-240V AC， 50/60Hz 80mA
输出： AA/AAA 2.4VDC*2 200mA ；9VDC 25mA
空载功耗： 1W MAX ；
满载功耗： 5W MAX ；
电池充饱率： ≥80%；
工作温度：0℃～＋35℃
储藏温度：-10℃～＋50℃
尺寸：78*65*26mm(长*宽*高)
重量：65g(不包含电池)
- Product features
a) Can charge 4 pcs AA or 2 pcs or 1 pc 9V AAA Ni-Mh / Ni-CD rechargeable batteries.
b) Timer cut-off.
c) This charger have no over temperature protection , but have reverse polarity protection , have over current and short circuit protection , have no defective and non-chargeable battery detection .
d) Worldwide Voltage, suitable for the whole world.
3. Electric parameter
1、Input：100-240V AC，50/60Hz 80mA；
2、Output：AA/AAA 2.4VDC*2 200mA；9VDC 25mA
3、Consume when unloading battery：1W MAX；
4、Consume when all channels loading batteries：5W MAX；
5、Chargingsufficiency of battery：≥80%；
4. Environment condition
1、Using environment: temperature: 0-35℃ humidity: ≤95％
2、Storage environment: temperature: -25～+60℃ humidity: ≤85％
3、Self environment when working: Surface temperature of charger when charging: ≤60℃，Surface temperature of battery when charging:≤55℃。
5. Safety spec
ord with safety standard: CE
6. Property
- High temperature test: testing temperature is 65℃±2℃. Product is without packing, lasting time is 5 hours. Then put it under normal temperature until return to normal. Retest the property, all goes well.
- Low temperature test: testing temperature is－20℃±3℃. Product is without packing, lasting time is 8 hours. Then put it under normal temperature until return to normal. Retest the property, all goes well.
- Constant temperature and humidity test: testing temperature is 40℃±2℃, humidity is 90%～95%. Product is without packing, lasting time is 48 hours. Then put it under normal temperature and humidity until return to normal. Retest the property, all goes well.
- Vibration test: Frequency is10～55HZ, swing is 0.35mm, To every direction 10 cycles. Then put it under normal condition until return to normal. Retest the property, all goes well.
- Floor drop test: Height is 1000mm，desk wood block thickness is 20mm, 6 sides, each side 1 time. After dropping test, the surface and all functions goes well.
