A

Features

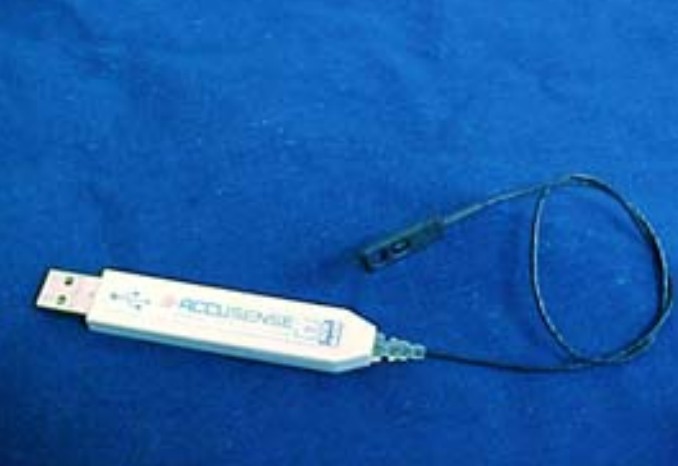

·Connect 36 air velocity and airflow temperature

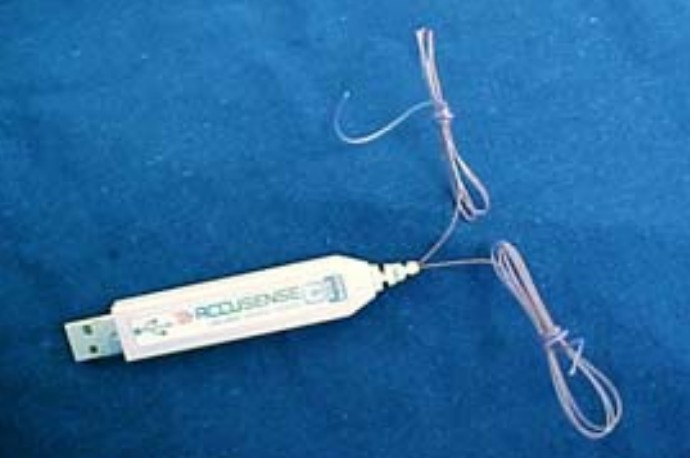

sensors (UAS1000 Series) and/or thermocouple

sensors (UTS1000 Series)

·Validate thermal and airflow models quickly and

urately

·Measure Air & Temperature in multiple

locations simultaneously

·Small sensors ess remote and compact

locations

·USB connection to PC

·New and improved uTrac software included

·Easy to use – just plug in and start measuring

·Airflow measurement uracy 5% of reading

from 0°C to 70°

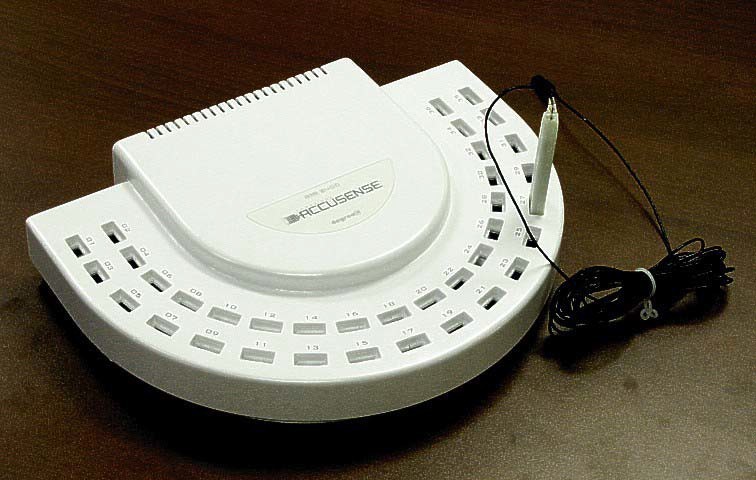

ATM2400



Airflow Measurement

Refer to the UAS1000 datasheet for airflow

and airflow temperature measurement details.

Temperature Measurement

Refer to the UTS1000 datasheet for surface

temperature measurement details.

Specifications

Operating temperature

Storage temperature

Relative humidity (non-condensing)

Supply voltage

Density correction

Sampling rate

Mechanical Specifications

10°C – 40°C for the ATM2400 hub

-20°C – 70°C

5-95%

92-240VAC, 50-60 Hz internal power supply. Power cord

included

Via uTrac 5.0 software

0.1 seconds to 60 minutes

Part Number Format

ATM2400

Purchase of ATM2400 includes ATM2400, power supply, carrying case, uTrac software,

sensor mounting clips, user manual

UAS & UTS sensors are sold separately.

bout the ATM2400

Multipoint measurement of air velocity as well as air and surface temperature are crucial steps in the

new product development process. These measurements, however, have traditionally been inexact,

labor-intensive, repetitive, and tedious. The new uSense ATM2400 has been designed to reduce

cost, increase efficiency, improve uracy and compress testing and evaluation time. Furthermore,

the ATM2400 expands on the capabilities of its predecessor, the ATM-24, with the inclusion of

thermocouple sensors, improved airflow sensor uracy, enhanced uTrac 5.0 software as well as an

additional 12 channels.

The ATM2400 now allows you to perform simultaneous measurement of air velocity and of airflow and

surface temperatures at 36 locations. Multiple ATM’s can be connected together to measure up to 100

points. The information is recorded real-time, and can be analyzed as data is being collected. The

ATM2400 uses the UAS Series of Airflow Sensors and UTS Series of Thermocouple Sensors. Improved

air velocity uracy to ±5% of reading from 0°C to 70°C further enhances the ATM2400’s

performance.

uTrac 5.0, a powerful Windows-based software package, comes with the ATM2400. With real-time

graphing and statistical analysis, uTrac’s new capabilities also include the ability to set testing time

length, display calibration date of sensors, and alarm when collected data is outside of the sensor

calibration range. The sampling rate is now as fast as 10 readings per second. All data is saved in

Excel compatible files.

Typical applications include thermal analysis of electronics in computer and munications

equipment, validation of CFD airflow and temperature modeling, airflow analysis in automotive

compartments, containment enclosures, and architectural modeling.

Whether you are determining the number of fans, analyzing airflows around critical components, or

validating software prediction models, the ATM2400, from uSense, the renowned expert in airflow

                    sensing, is the new gold standard for multipoint airflow and temperature monitoring
