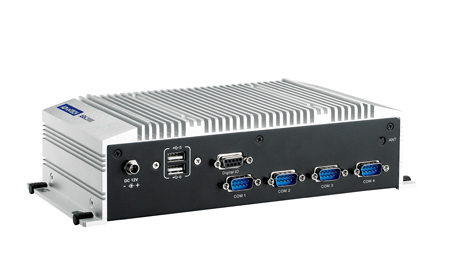

研华  ARK-2120L
 原装新品  质保2年

采用Intel® Atom™ N2600/D2550的高价值紧凑型嵌入式工控机，支持丰富I/O

详细配置信息：

ARK-2120L-S6A1E （Atom N2600
1.6GHz /2G/320G/电源适配器）

ARK-2120L-S8A1E （Atom D2550 双核1.8GHz /2G/320G/电源适配器）

特点：

• 采用Intel® Atom™ N2600/D2550
  1.86GHz处理器的无风扇紧凑型嵌入式工控机
• VGA，HDMI双独立显示，支持DirectX 9
• 1×DDR 3内存，最高支持4GB
• 支持带SIM插口的mini PCIe通信模组扩展，例如HSDPA，WLAN
• 最高支持2×千兆网口，6×USB
  2.0，4×COM
• 支持外部Cfast插槽和1×2.5"HDD
• 可锁固DC电源输入接头
• 支持iManager、SUSIAccess和Embedded Software APIs
• 符合IP40防护等级

• 详细参数：

   ARK-2120L-S6A1EARK-2120L-S8A1E

  �1�3�1�3Processor	CPU	Intel Atom N2600	Intel Atom D2550
  	CPU TDP	3.5 W	10 W
  	Frequency	1.6 GHz	1.86 GHz
  	Core Number	2	2
  	L2 Cache	1MB	1MB
  	BIOS	AMI EFI 16Mbit	AMI EFI 16Mbit
  	Chipset	Intel NM10	Intel NM10
  Memory	Technology	DDR3 800MHz	DDR3 1066MHz
  	Max. Capacity	4 GB	4 GB
  	Socket	1 x 204-pin SODIMM	1 x 204-pin SODIMM
  Display	Controller	Intel Atom N2600 Integrated	Intel Atom D2550 Integrated
  	Graphic Engine	DirectX 9 and OpenGL 3.0 support	DirectX 9 and OpenGL 3.0 support
  	VGA	Up to 1920 x 1200	Up to 1920 x 1200
  	DDI (HDMI/DVI/DisplayPort)	HDMI:1920 x 1200 @ 60Hz	HDMI:1920 x 1200 @ 60Hz
  	Multiple Display	Dual	Dual
  Expansion	Mini-PCIe	1	1
  	SIM Socket	1	1
  Ethernet	Controller	GbE1: Intel 82583V, support wake on LAN. GbE2: Intel 82583V, support wake on LAN.	GbE1: Intel 82583V, support wake on LAN. GbE2: Intel 82583V, support wake on LAN.
  	Speed	10/ 100/ 1000 Mbps	10/ 100/ 1000 Mbps
  	Connector	RJ45 x 2	RJ45 x 2
  Audio	Audio Interface	HD Audio	HD Audio
  	CODEC	Realtek ALC892, High Definition Audio (HD)	Realtek ALC892, High Definition Audio (HD)
  	Connector	1 (Line-in, Line out, Mic-in)	1 (Line-in, Line out, Mic-in)
  Watchdog Timer	WatchDog Timer	Yes	Yes
  Storage	SATA	1 x SATA II (Max. Data Transfer Rate 300 MB/s)	1 x SATA II (Max. Data Transfer Rate 300 MB/s)
  	CFast	1	1
  I/O	USB2.0	6	6
  	GPIO	8	8
  	COM Port	4 (3 x RS232, 1 x RS232/ 422/ 485)	4 (3 x RS232, 1 x RS232/ 422/ 485)
  Power	Power Type	ATX, AT	ATX, AT
  	Power Supply Voltage	Vin: 12V	Vin: 12V
  	Connector	Lockable DC Jack	Lockable DC Jack
  	Power Consumption (Idle)	8.76W	9.19W
  	Power Consumption (Full Load)	13.08W	14.25W
  	Battery	Lithium 3 V / 210 mAH	Lithium 3 V / 210 mAH
  	Power Adaptor	Optional	Optional
  Environment	Operational Temperature	With extend temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With HDD: 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow	With extend temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With HDD: 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
  	Non-Operational Temperature	-40~ 85° C and 40° C @ 95% RH Non-Condensing	-40~ 85° C and 40° C @ 95% RH Non-Condensing
  	Vibration Resistance	With SSD: 5 Grms	With SSD: 5 Grms
  	Shock Protection	With SSD: 50 G	With SSD: 50 G
  Physical	Dimension (mm)	264.5 x 133.0 x 68.4 mm	264.5 x 133.0 x 68.4 mm
  	Weight	2.3 kg (5.07 lb)	2.3 kg (5.07 lb)
  	Construction	Aluminum/Iron	Aluminum/Iron
  	Mounting	Desk/ Wall/ VESA/ DIN-Rail mounting	Desk/ Wall/ VESA/ DIN-Rail mounting
  Operating System	Microsoft Windows	Yes	Yes
  	Linux	Yes	Yes
  	SUSIAccess	Yes	Yes
  	iManager	Yes	Yes
  Certification	EMC	CE, FCC, CCC, BSMI	CE, FCC, CCC, BSMI
  	Safety Certifications	UL, CCC, BSMI	UL, CCC, BSMI

  订购信息：

ARK-2120L-S6A1E
Atom N2600
1.6GHz w/ HDMI+VGA+2*GbE+4*COM+6*USB

ARK-2120L-S8A1E
Atom D2550
1.8GHz w/ HDMI+VGA+2*GbE+4*COM+6*USB
