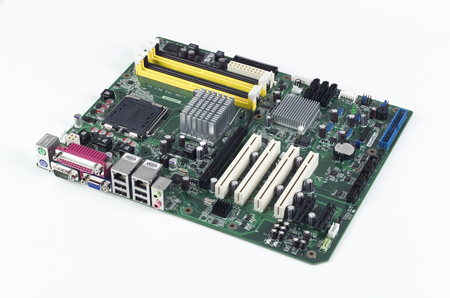

'研华   AIMB-766VG           全国联保2年支持LGA 775 酷睿2四核/酷睿2 CPU ATX主板，支持DDR2/千兆网络/4COM

主要特点:

• Intel Q35 and ICH9 DO芯片组，支持800/1066/1333 MHz FSB
• 支持酷睿2双核、Quad 四核 CPU
• 支持双通道DDR2 667/800MHZ 内存，最大容量支持8 GB
• 芯片组集成显卡
• 支持PCIe x 16插槽，可外扩VGA card
• 支持4 PCI，2 PCIe x1，1 PCIe *16
• 支持6 SATA II



 详细参数:



 AIMB-766G2-00A2EAIMB-766VG-00A2E

Ethernet	Controller	GbE LAN1: Intel 82566DM, GbE LAN2: Intel 82573L	GbE LAN1: Intel 82566DM
Expansion Slot	Slot 1	PCIe x1 250MB/s per direction	PCIe x1 250MB/s per direction
	Slot 2	PCIe x1 250MB/s per direction	PCIe x1 250MB/s per direction
	Slot 3	PCI 32bit / 33MHz	PCI 32bit / 33MHz
	Slot 4	PCI 32bit / 33MHz	PCI 32bit / 33MHz
	Slot 5	PCI 32bit / 33MHz	PCI 32bit / 33MHz
	Slot 6	PCI 32bit / 33MHz	PCI 32bit / 33MHz
	Slot 7	PICe x16 4.0GB/s per direction	PICe x16 4.0GB/s per direction
Expansion Supported	PCI	4	4
	PCI-E	3	3
Form Factor	ATX	12" X 9.6"	12" X 9.6"
Memory	(Max)	8GB DDR2	8GB DDR2
	Type	4 x DDR2 667/800 MHz	4 x DDR2 667/800 MHz
Network	LAN	2 GbE	1 GbE
Processor	CPU Type	Core™ 2 Quad Core™ 2 Duo	Core™ 2 Quad Core™ 2 Duo
	Max Speed	2.66GHz	2.66GHz
Processor System	Chipset	Intel Q35+ICH9 DO	Intel Q35+ICH9
	CPU	Intel Core2 Quad/Core2 Duo/Pentium Dual Core/Celeron	Intel Core2 Quad/Core2 Duo/Pentium Dual Core/Celeron
	Front Side Bus	800/1066/1333 MHz	800/1066/1333 MHz
	Socket	LGA775	LGA775
Rear I/O Interface	USB	4 (USB 2.0 compliant)	4 (USB 2.0 compliant)
	VGA	Intel GMA 3100 sharing 384 MB system memory	Intel GMA 3100 sharing 384 MB system memory
Storage	SATA	300MB/s SATAII x 6( (Supports SATA RAID 0,1,5,10) ,100/66/33 MB/s ATA x 1(Max. 2 devices)	300MB/s SATAII x 4 ,100/66/33 MB/s ATA x 1(Max. 2 devices)



订货信息：

 AIMB-766VG-00A1E    C2D LGA775 ATX FSB 1333 w/ VGA/PCIe/single GbE

'
