产品介绍
- 产品信息
- 产品名称： 聚酯粉末，环氧粉末
- 规 格： 25公斤/箱
- 使用部位： 金属，铁，铝，不锈钢，铸铁件等
- 光 泽： 5-100
- 涂刷面积： 8²
- 是否可调色： 可调
Product Datasheet
BU Powder Coatings
abcd 700
abcd 700 is a series of epoxy/polyester hybrid powder c oatings offering improved colour, UV-light and heat
stability compared to the abcd 100 range of pure epoxies, whilst main taining an optimum combination of
Interpon 700 - Issue 5
Issued 03/11/2009
decorative and protective qualities.
Product Description
abcd 700 powders are available in the full range of colours in gloss, reduced gloss, textured, aluminium
and other special finishes or can be custom matched to the user’s requirements.
Chemical type Epoxy/Polyester
Particle Size Suitable for electrostatic spray
Specific gravity 1.2 -1.7 g/cm³ depending on colour
Storage Dry cool conditions below 25°C
Shelf life 12 months
Sales Code E-series
Stoving schedule
(a)
20 minutes at 160°C
(object temperature) 10 minutes at 180°C
6 minutes at 200°C
(a) For full matt powders add 5 minutes to times shown.
For high reactivity (HR) powders see overleaf
Test Conditions The results shown below are based on mechanical and chemical tests which (unless otherwise indicated)
have been carried out under laboratory conditions and are given for guidance only. Act ual product
performance will depend upon the circumstances under which the product is used.
Substrate Mechanical tests: Gold Seal polished steel
Chemical & durability tests: Gold Seal lightweight
Pretreatment Zinc phosphate
Film Thickness 50 microns
Stoving 6 minutes at 200
o
C (object temperature)
Mechanical Tests Adhesion BS EN ISO2409 Gt 0
(2mm Crosshatch)
Erichsen Cupping ISO1520 Pass >7mm
Hardness BS EN ISO 1518 Pass - no penetration to
(2000gms) substrate
Impact BS3900-E3 Pass 2.5mm
Flexibility ISO6860 Pass 3mm
(Conical Mandrel)
Chemical and Salt Spray ISO7253 Pass - no corrosion creep
Durability Tests (250 hours) more than 2mm from scribe
Cyclic Humidity BS3900-F2 Pass - no blistering or loss
(1000 hours) of gloss
Distilled Water BS3900-F7 Pass - no blistering or loss
Immersion (240 hours) of gloss
Exterior Durability Some chalking after 6-12 months continuous outdoor exposure but less than
pure epoxies. Protective properties not impaired
Colour Stability at Good - satisfactory for continuous exposure up to 125° C
elevated temperatures
Chemical Resistance Generally good resistance to acids, alkalis and oils at normal temperatures
Powder Properties
abcd 700
AkzoNobel Powder Coatings Ltd. Worldwide Powder Group. Stoneygate Lane, Felling, Tyne & Wear. NE10 0JY. UK.
Tel: +44 (0) 191 469 6111 Fax: +44 (0) 191 438 5431 www.interpon.com
Copyright ©2009 AkzoNobel Powder Coatings Ltd. Interpon is a registered trademark of AkzoNobel
Interpon 700 - Issue 5 2
Issued: 03/11/2009
Pretreatment Aluminium, steel or Zintec surfaces to be coated must be clean and free from grease. Iron phosphate and
particularly lightweight zinc phosphating of fe rrous metals improves corrosion resistance.
Aluminium substrates may require a chromate conversion coating.
Application abcd 700 powders can be applied by manual or automatic electrostatic spray equipment. Unused powder
can be reclaimed using suitable equipment and recycled through the coating system.
Additional abcd 700 powders are available in bright aluminium finis hes which are susceptible to scratching and finger
marking. Protection by use of a clear polyester top coat is recommended when the coated article is to be
subject ed to physical damage or environmental damage. The top coat should ideally be app lied within 2 hours
of the metallic coating and gloves should be worn when handling the metallic coated articles.
For further details on the use of metallic powder coatings please contact AkzoNobel.
abcd 700HR (High Reactivity) powders are also available for use where a lower stoving temperature or
shorter curing schedule is required.
Sales code: F-Series
Stoving schedule: 15 minutes at 160 ° C
(object temperature) 5 minutes at 180 ° C
Shelf life: 6 months
For further details on powder properties and film performance of abcd 700HR please contact AkzoNobel.
Safety Precautions Please consult the Mate rial Safety Datasheet (MSDS)
FOR PROFESSIONAL USE ONLY
IMPORTANT NOTE The information in this data sheet is not intended to be exhaustive and is based on the present state of our
knowledge and on current laws: any person using the product for any purpose other than that specifically recommended in the
technical data sheet without first obtaining written confirmation from us as to the suitabilit y of the product for the intended purpose does
so at his own risk. It is always the responsibility of the user to take all necessary steps to fulfill the demands set out in the local rules
and legislation. Always read the Material Data Sheet and the Tec hnical Data Sheet for this product if available. All advice we give or
any statement made about the product by us (whether in this data sheet or otherwise) is correct to the best of our knowledge bu t we
have no control over the quality or the condition of the substrate or the many factors affecting the use and application of the product.
Therefore, unless we specifically agree in writing otherwise, we do not accept any liability whatsoever for the performance of the
product or for any loss or damage arising out of the use of the product. All products supplied and technical advice given are subject to
our standard terms and conditions of sale. You should request a copy of this document and review it carefully. The information
contained in this data sheet is subject to modification from time to time in the light of ex perience and our policy of continuous
development. It is the user\'s responsibility to verify that this data sheet is current prior to using the product.
Brand names mentioned in this data sheet are trademarks of or are licensed to AkzoNobel

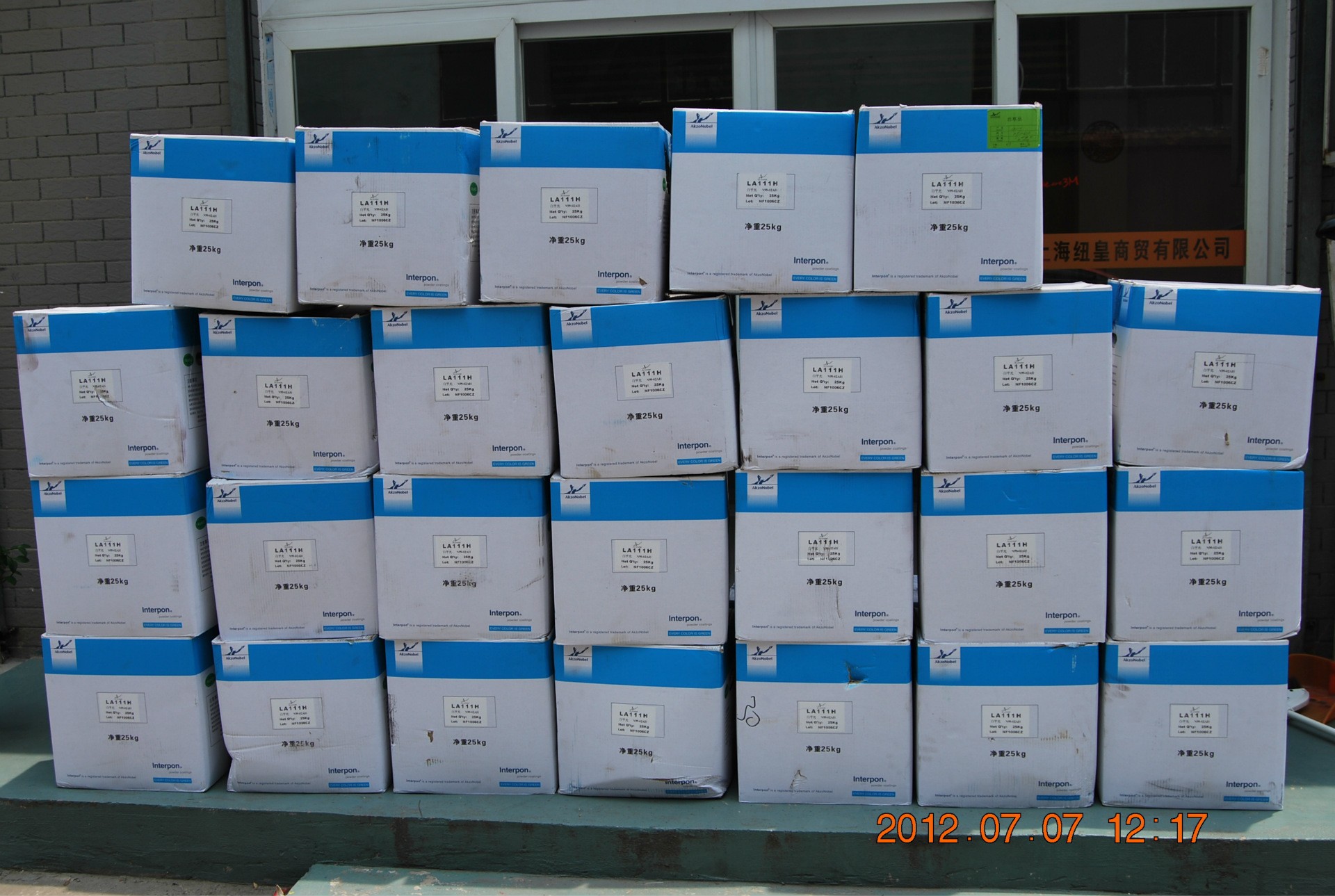

产品实拍图
BU Powder Coatings
JN167Z 黑色平面平光
Interpon 600
产品概述
粉末特性 化学类型: 聚酯型
粒 径: 适合静电喷涂
比 重: 1.2-1.8g/cm
3
(与颜色有关)
储存条件: ＜25℃ 干燥阴凉处
有 效 期: 12个月（＜25℃），6个月（＜30℃）
固化条件:
10分钟 @200°C
测试条件
基材: 机械性能测试采用0.6mm厚的脱脂冷轧钢板
耐腐蚀老化性能测试采用0.6mm厚的锌系磷化钢板或者铬化铝板
推荐膜厚: 60-80微米
固化条件: 10 分钟 @200°C (金属实体温度)
干附着力: ASTM D3359 通过—结果为5B
GB/T 9286 通过—结果为0级
物理测试 铅笔硬度(划伤硬度): ASTM D3363 >=H
GB/T 6739 >=H
杯突试验: ISO1520 通过5mm—涂层无开裂或脱落现象
GB/T 9753 通过5mm—涂层无开裂或脱落现象
耐冲击(正冲): ASTM D2794 >=50kg·cm
GB/T 1732 50kg·cm
弯曲试验: ASTM D522 通过—曲率直径为5mm
GB/T 1731 通过—曲率半径为1mm
中性盐雾喷雾: ISO 9227 通过—250小时，划线两侧膜下单边渗透腐蚀宽度不超过2mm
腐蚀老化性能 耐水雾: ASTM D1735 通过—1000小时，无起泡及失光现象
耐水浸渍性: ASTM D870 通过—240小时，无起泡及失光现象
耐候性 : 12 个月户外曝晒,有轻微失光,但无粉化现象,仍保持优异的保护性能
耐化学品性 : 好（用一般的酸,碱,油在常温下测试）
Product Data Sheet
Interpon 600是系列纯聚酯粉末涂料， 主要以TGIC为固化剂，使用在户外场合。它具有优良的耐候性和耐热性。
Interpon 600优良的耐热性使得它在长期受热的情况下也有很好的保色率。
Interpon 600颜色丰富多彩，有亮光/平光/消光/砂纹/垂纹等光泽和效果可供选择。
所有化学和物理性能均为实验室在特定条件下的测试结果（除特别申明外）， 仅供涂装应用之参考。实际产品性
能仍 然需要依据产品的最终使用环境而定。
网址：www.interpon.com
版权 ©2004 阿克苏诺贝尔粉末涂料有限公司 Interpon是阿克苏诺贝尔的注册商标
Interpon 600
Issued: 28/02/2013
BU Powder Coatings
JN167Z 黑色平面平光
Interpon 600
前处理
涂装
备注:
安全警告
版权 ©2004 阿克苏诺贝尔粉末涂料有限公司 Interpon是阿克苏诺贝尔的注册商标
Interpon 600
Issued: 28/02/2013
Product Data Sheet
为起最大限度保护作用,涂装Interpon 600前必须前处理工件。 所有金属底材均需除油脱脂，铁系金属采用锌或铁
系磷 化，铝推荐铬化处理，以改善耐腐蚀。铝材工件必须使用铬化前处理。
Interpon 600可以使用手动或自动喷涂设备.未喷涂粉末可以通过合适回收系统循环使用。
如客户对产品有特殊需求，请在打样前提前告知相关销售人员，以便于在配方设计时调整。欲知更详细粉末特性
和涂膜性能, 请洽阿克苏诺贝尔粉末涂料有限公司。
此产品仅提供给专业的涂装者使用.没有获得阿克苏诺贝尔提供的健康和安全数据表等相关资料时不应涂装。不管
什么原因没有健康和安全数据表等相关资料的使用者，请喷涂前联系阿克苏诺贝尔取得副本。以下是使用所有粉
末的最简单的安全警告.
所有粉尘对呼吸系统有刺激性,必须避免吸入粉尘和烘烤时释放的气体。避免皮肤接触，如接触到用肥皂和
清水清洗。不慎进入眼睛立即用水冲洗和就医。游离的有机微粒形成的尘雾遇电火花或明火可燃烧。尘和粉末不
能堆积在墙壁，架子上。集尘系统必须安装有效的防爆炸设备。所有的设备必须接地防止静电堆积。使用者务必
遵守国家安全标准。
仅供专业人士使用
备注：此表提供的信息无法全面的包括所有事项，它建立在现有法律和现有知识状态下，没有事先取得我们对超出本表范围时的适用性
的书面通知前提前独自冒险超出指引范围使用产品的人由他本人承担后果。采取必要措施满足当地法律法规的要求是用户义不容辞的责
任。如果时间允许要不断阅读我们产品的原料数据表和技术参数表，同时我们竭力确保我们产品所有的指引是正确的,但是我们不能完全
控制底材的质量或条件或者会影响产品使用的诸多因素。因此,除非我们特别书面的确认,我们不承担超出此产品范围以外的无论什么情况
或无论何种产品性能或任何损失或任何危险的责任(我们疏忽大意引起的人员伤亡)。提供的所有产品和技术建议都服从我们的标准和销售
条件，请取得该文件的副本并仔细阅读。此表中的内容将随着我们的产品持续发展和不断发展的政策累积经验而补充完善。用户有权力
核实该表中的数据在产品使用之前就存在。
产品细节图
使用（施工）说明
步骤一：前处理
步骤二：喷砂，酸洗，磷化
步骤三：预热
步骤四：喷涂
步骤五：200度烘烤10分钟
步骤六：
