价格仅供参考,具体价格请致电咨询

    编码器是集精密光学、精密机械及微电子技术为一体的高科技产品.编码器通过光电转换原理用来采集机械的旋转角度、位置、速度及加速度等数据,将这些数据传送给中心控制器,可实现自动化控制.因此广泛应用于机械、机床制造业、电梯、造纸印刷、包装机械、起重等自动化领域.

    The encoder is a kind of high-tech product, concentrated on precise optic and precise machinery and tiny electric. It collects the rotate angle, position, speed and accelerated speed of the machine through the principle of transform between optic and electric. Then transmiting the data to the center controller in order to realize automatic control. So it is widely used in the automatic area such as machinery, machine-tool industry, elevator, papermaking, printing, packing, crane and so on.

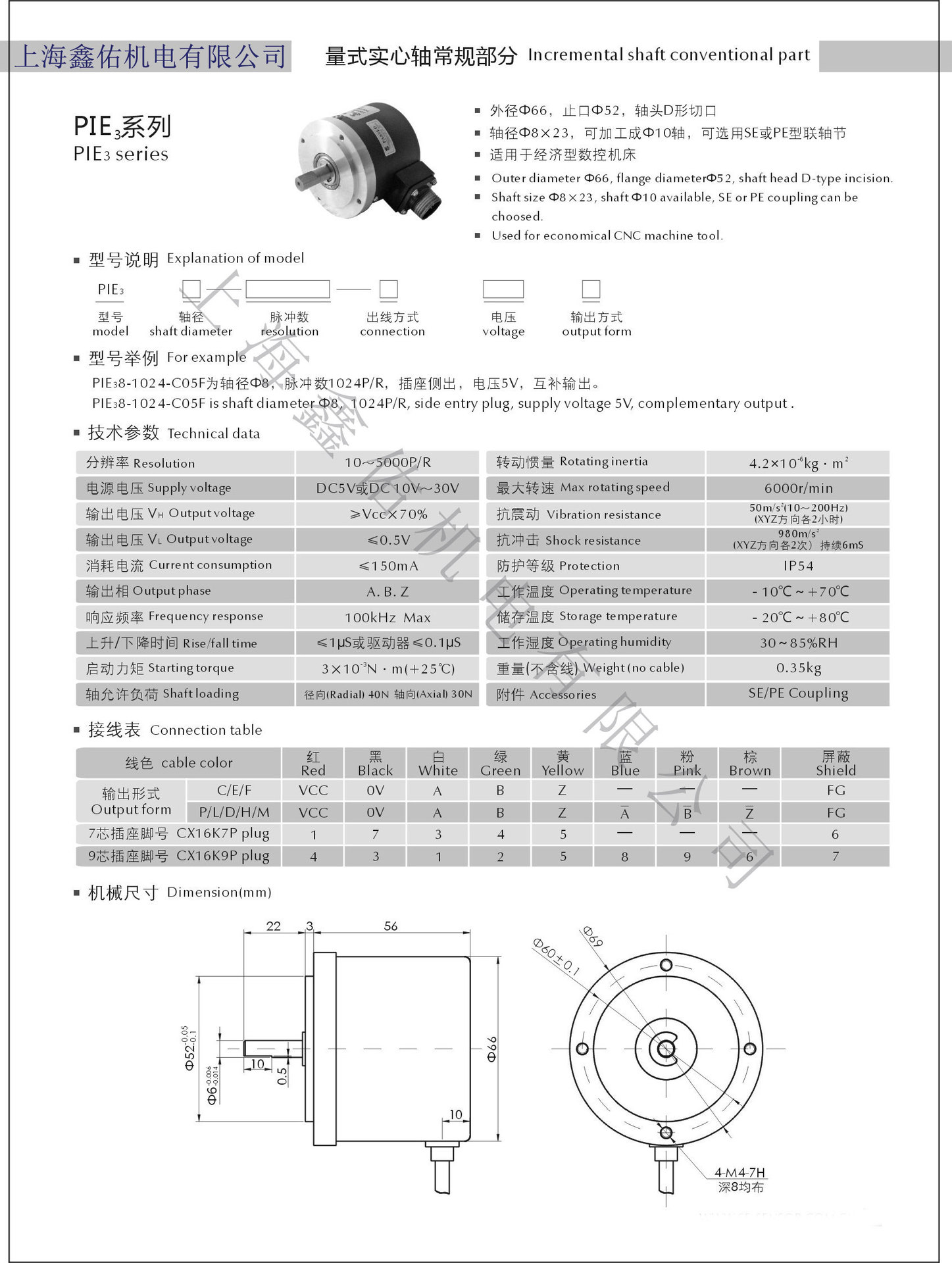

增量式编码器

Incremental encoder

1、 增量式编码器轴旋转时,有相应的脉冲输出,其旋转方向的判断和脉冲数量的增减需借助外部的判向电路和计数器来实现.

2、 其计数起点可任意设定,并可实现多圈的无限累加和测量.还可以把每转发出一个脉冲的Z信号,作为参考机械零位.

3、 编码器的轴转一圈会输出固定的脉冲.对于光学旋转编码器,输出脉冲数与编码器光栅的刻线数相同.需要提高分辨率时,可利用90   度相位差的A、B两路信号,对原信号进行倍频.

1、 It will output corresponding resolution when the shaft of incremental encoder revolves. The revolve direction’s     judgement and the add or subtract of pulse number needs the help of “Judge Direction Circuit” and counter to realize.

2、 The start point of the counter can be set freely. It can also realize multi-circles unlimited accumulation and measurement. We can regard Z  signal as counter’s reference point.

3、 When the encoder goes a round, it will output a fixed pules, number which is same as the resolution. When it needs to raise the re-solution, we can interpolate to original signal, using A and B signals of the 90° phrase shift.

特点与应用

Feature and Application

1、具有体积小、安装方便、抗干扰性强.

2、    高转速:最高可达6000rpm,高频响0~100kHz.应用户要求最高可达300KHz,有此要求时,订货请注明.

3、    分辨率范围宽:10~10000P/R,标准应用温度-10oC~70oC .

4、    轴,载荷能力强、耐冲击、抗震好、可靠性高、工作寿命长.

5、    带短路保护电路,驱动器输出,延长信号传输距离,增强抗干扰能力.

6、    应用于自动控制、自动测量等自动化领域中.如数控机床、伺服电机、高速电梯、机器人、轧钢机械、纺织机械、印刷机械、轻工机械、汽车工业、金融电子、加油机、流量机、试验机及办公室自动化仪器仪表等行业.

1、 Small size, easy installation, strong ability of resistance.

2、 High rotating speed, max up to 6000rpm, frequency response 0-100KHZ, it can be up to 300KHZ according to the clients. If request this, please note when order.

3、 Wide range of resolution:10-100P/R, Standard operatingtemperature -10~ 70oC

4、 Strong ability of shaft load, shock resistance, vibration resistance,high reliability, long working lift.

5、 It has short-circuit protection circuit, line driver output improve ablity of interference resistance and can extend the distance of signal transmission.

6、 It is widely used in automatic area of automatic control and auto matic measurement, such as CNC machine tools, servo motor, high-speed elevators, robot, rolling machinery, textile machinery, printing machinery, light industry machinery, automobile industry, financial electronics, tander, flow machine, testing machine and office automatic instruments.

公司介绍
     我公司成立于2002年,十年来一直致力于将高品质的CNC相关产品广泛供应至各地区及各业界，并成立以客户为中心的技术平台，提供展示、测试、教育训练及定期专业课程，以丰富的功能满足客户对自动化的需求。

   公司生产及代理的产品系列繁多,其销售网络已遍布国内各大城市及东南亚、欧美等地区。产品广泛涉及：电子手轮、手动脉波发生器、波段开关、数控机床面板、NC系统配套电缆，三菱CNC相关部品等等。

   我司“一流产品，一流服务，以客为尊，以质为本”的经营管理理念，严格按照ISO的质量管理体系进行运作，所有产品都经严格检查QC合格后才出货，品质保证，销售的产品均获得CE,UL，CSA等国际认证。

   我们拥有经验丰富的工程技术队伍，为客户解决各种技术难题。（对特别的客户及市场可采取OEM的方式进行加工，并对客户拥有知识产权的产品实行合同制的方式以确保双方利益）经过多年的发展，我们已形成了产品、技术及服务配套三位一体的经营方针，服务客户，使我们与客户之间息息相关，密切配合，我们拥有一批“一切为客户着想”的售后服务队伍，让每个客户无后顾之忧。
