价格仅供参考,具体价格请致电咨询

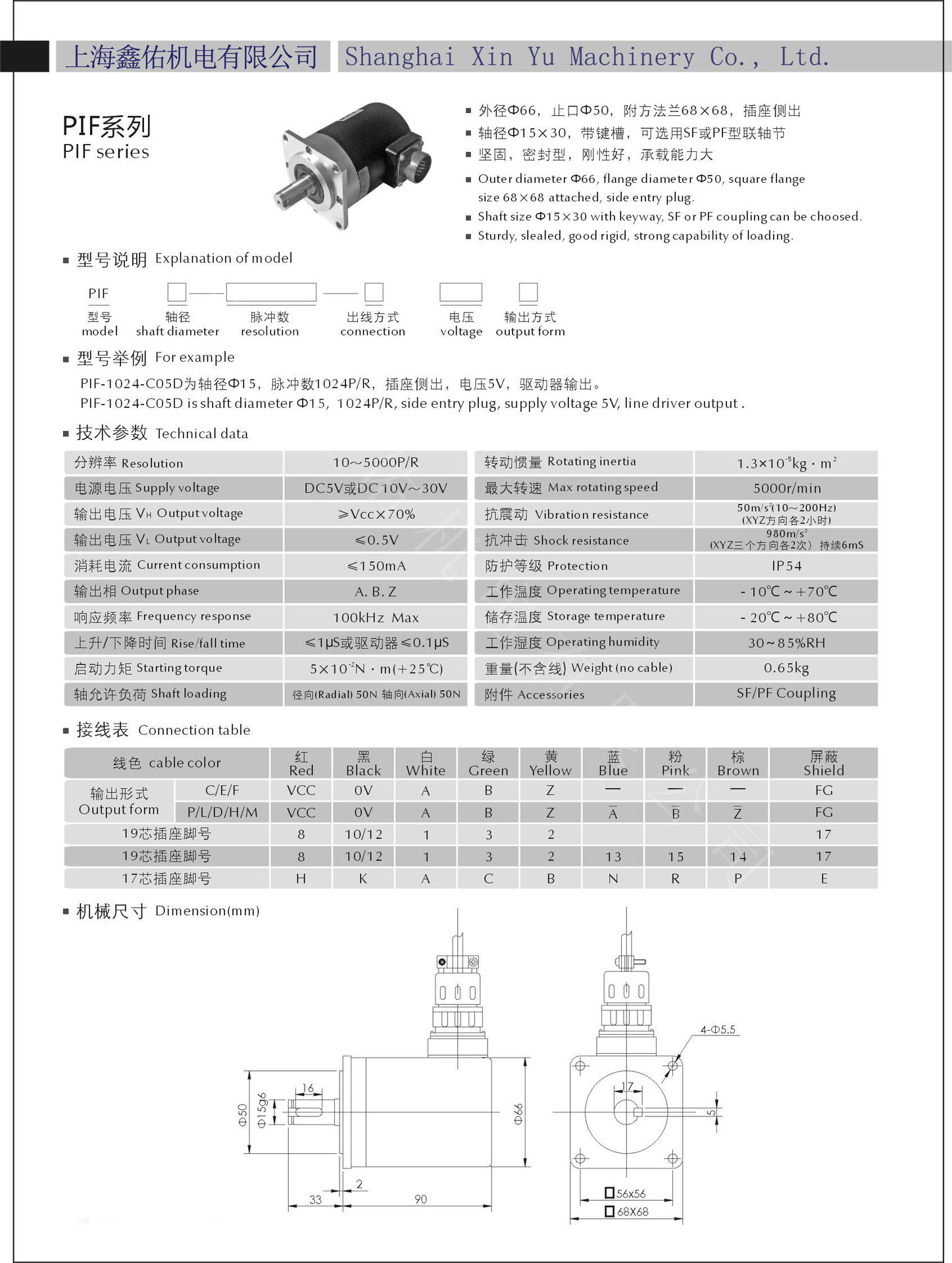

这型产品完全代用IN1024-2MD

    编码器是集精密光学、精密机械及微电子技术为一体的高科技产品.编码器通过光电转换原理用来采集机械的旋转角度、位置、速度及加速度等数据,将这些数据传送给中心控制器,可实现自动化控制.因此广泛应用于机械、机床制造业、电梯、造纸印刷、包装机械、起重等自动化领域.

    The encoder is a kind of high-tech product, concentrated on precise optic and precise machinery and tiny electric. It collects the rotate angle, position, speed and accelerated speed of the machine through the principle of transform between optic and electric. Then transmiting the data to the center controller in order to realize automatic control. So it is widely used in the automatic area such as machinery, machine-tool industry, elevator, papermaking, printing, packing, crane and so on.

增量式编码器

Incremental encoder

1、 增量式编码器轴旋转时,有相应的脉冲输出,其旋转方向的判断和脉冲数量的增减需借助外部的判向电路和计数器来实现.

2、 其计数起点可任意设定,并可实现多圈的无限累加和测量.还可以把每转发出一个脉冲的Z信号,作为参考机械零位.

3、 编码器的轴转一圈会输出固定的脉冲.对于光学旋转编码器,输出脉冲数与编码器光栅的刻线数相同.需要提高分辨率时,可利用90   度相位差的A、B两路信号,对原信号进行倍频.

1、 It will output corresponding resolution when the shaft of incremental encoder revolves. The revolve direction’s     judgement and the add or subtract of pulse number needs the help of “Judge Direction Circuit” and counter to realize.

2、 The start point of the counter can be set freely. It can also realize multi-circles unlimited accumulation and measurement. We can regard Z  signal as counter’s reference point.

3、 When the encoder goes a round, it will output a fixed pules, number which is same as the resolution. When it needs to raise the re-solution, we can interpolate to original signal, using A and B signals of the 90° phrase shift.

特点与应用

Feature and Application

1、具有体积小、安装方便、抗干扰性强.

2、    高转速:最高可达6000rpm,高频响0~100kHz.应用户要求最高可达300KHz,有此要求时,订货请注明.

3、    分辨率范围宽:10~10000P/R,标准应用温度-10oC~70oC .

4、    轴,载荷能力强、耐冲击、抗震好、可靠性高、工作寿命长.

5、    带短路保护电路,驱动器输出,延长信号传输距离,增强抗干扰能力.

6、    应用于自动控制、自动测量等自动化领域中.如数控机床、伺服电机、高速电梯、机器人、轧钢机械、纺织机械、印刷机械、轻工机械、汽车工业、金融电子、加油机、流量机、试验机及办公室自动化仪器仪表等行业.

1、 Small size, easy installation, strong ability of resistance.

2、 High rotating speed, max up to 6000rpm, frequency response 0-100KHZ, it can be up to 300KHZ according to the clients. If request this, please note when order.

3、 Wide range of resolution:10-100P/R, Standard operatingtemperature -10~ 70oC

4、 Strong ability of shaft load, shock resistance, vibration resistance,high reliability, long working lift.

5、 It has short-circuit protection circuit, line driver output improve ablity of interference resistance and can extend the distance of signal transmission.

6、 It is widely used in automatic area of automatic control and auto matic measurement, such as CNC machine tools, servo motor, high-speed elevators, robot, rolling machinery, textile machinery, printing machinery, light industry machinery, automobile industry, financial electronics, tander, flow machine, testing machine and office automatic instruments.
