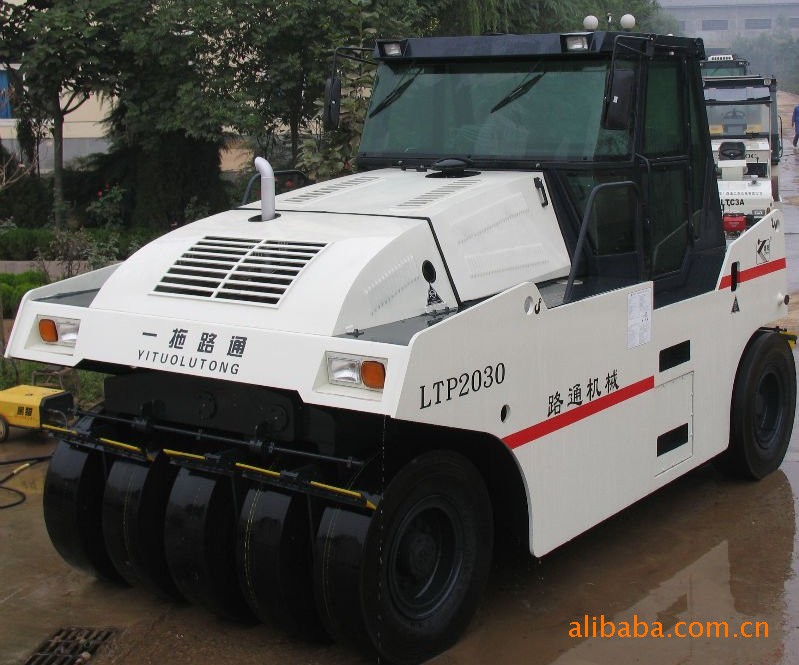

LTP1016/LTP1826/ LTP2030机械驱动轮胎压路机
LTP1016H/LTP1826H/ LTP2030H液压驱动轮胎压路机
LTP1016/LTP1826/LTP2030Mechanical Drive Pneumatic Wheels Rollers
LTP1016H/LTP1826H/LTP2030HHydraulic Drive Pneumatic Wheels Rollers
轮胎压路机系列依靠自身的重量压实建筑和道路工程中的粘性和非粘性材料如：沥青混凝土、砂砾混合料、各种稳定土和碾压水泥凝土(材料)等，尤其适宜于高等级公路的路面处理。
Pneumatic tyre roller series are designed for the compactcohesive and non-cohesive materials，such as asphaltconcrete，cement or lime stabilized soils，gravels，sands andclay mixtures，Rolling Cement Concrete()in theconstruction projects，espeially suitable for the preparation of the upper courses of high grade highway．
主要特点：Main Features
▲LTP2030、LTPl826、LTPl016为大吨位低重心设计，操作安全舒适。
▲LTP2030、LTPl826选用康明斯6BTA柴油机，动力强劲有力，可适应于各种工况。
▲前进三档后退二档变速，玻璃钢洒水箱及多级洒水过滤系统可确保系统的可靠工作。
▲LTP2030H、LTPl826H、LTPl016H为全液压无级变速，操作更加简单可靠。
▲LTPl016、LTPl016H选用康明斯4BT柴油机，动力强劲有力，可适应于各种工况。
▲LTP2030、LTPl826、LTPl016 low gravitational center designed for safe and comfortable operation.
▲LTP2030、LTPl826 abopt CUMMINS 6BTA diesel engine. Powerful strength,which is suitable to all environments.
▲Three forward speed and two backward changes. Glass fiber reinforced plastic spraying box and multi-layerwater
filter ensure the stability of the system．
▲With stepless speed changes LTP2030H、LTPl826H、LTPl016H is easy and reliable to operate.
▲Power strength LTPl016、LTPl016H which adopted 4BT Cummins engine, is suitable to all environments.
主要的技术参数Main technical parameters：
型号 | MODEL |
| LTP1016 | LTP1016H | LTP1826 | LTP1826H | LTP2030 | LTP2030H |
工作质量 | Operating mass | kg |
|
|
|
| | |
不加载 | Without ballast |
| 10000 | 18000 | 18000 | 18000 | 20000 | 20000 |
加载 | With ballast |
| 16000 | 26000 | 26000 | 26000 | 30000 | 30000 |
最高前进速度 | Max. travel speed | Km/h | 20.75 | 0-14 | 20.75 | 0-14 | 20.75 | 0-14 |
轮胎数量(前+后) | Tyre quantity(front+rear) |
| 4+5 | 4+5 | 5+6 | 5+6 | 5+6 | 5+6 |
最小转弯半径 | Min.turning radium | mm | 7500 | 7500 | 8000 | 8000 | 8000 | 8000 |
爬坡能力 | Grade ability | % | 20 | 20 | 30 | 20 | 20 | 20 |
碾压宽度 | Compaction width | mm | 2286 | 2286 | 2790 | 2790 | 2790 | 2790 |
轴距 | Wheelbase | mm | 3700 | 3700 | 3800 | 3800 | 3800 | 3800 |
总长 | Overall length | mm | 4780 | 4780 | 4800 | 4800 | 4800 | 4800 |
总宽 | Overall width | mm | 2280 | 2280 | 2800 | 2790 | 2800 | 2800 |
总高 | Overall height | mm | 3200 | 3200 | 3100 | 3100 | 3100 | 3100 |
柴油机型号 | Diesel model |
| Cummins 4BT3.9 | Cummins 4BT3.9 | Cummins 6BTA5.9 | Cummins 6BT5.9 | Cummins 6BTA5.9 | Cummins 6BT5.9 |
柴油机功率 | Diesel power | KW | 75 | 75 | 125 | 125 | 125 | 125 |
注：本厂产品随技术进步不断改进，样本所列参数和结构特性与实物差异之处订货。
联系人：高利峰 电话：13383887708 QQ：550426907
'
