1：即插即用，免驱动，无需电脑，支持边录制边玩游戏，一键录制 操作简单方便；
2：机身自带4GB RAM 另外支持USB或便携式移动硬盘拓展；
3：复合端子接口（HDMI+YPbPr+AC)/.3.5mm音频接口
4：支持Windos 7/8（32/64位），window vista（32/64位） 系统
5: 配件高清线/色差线/编辑软件/电源适配器/说明书
6：电源适配器（英规/美规/欧规）可根据客户要求搭配
7：后盖网状，利于热量的散发
产品特性：
1.真正达到高清1080P
2.HDMI输入 输出；色差端子输入
3.可以用于采集高清视频 高清游戏 视频会议 医疗视频采集
4.占用CPU 内存小，高效压缩 5.简易操作
【产品特点】
不 需要经过电脑就可以把你所需要的电视跟电脑/DVD/摄像机/高清播放机/游戏机里的视频内容上的视频采集下来放在采集卡上的U盘或者电脑里 面。 全面支持标/高清视频信号采集，采集分辨率达1080P 实时高画质动态图像采集，这个高清视频采集,您可以捕获从HDMI或色差端子端口1080P的视频,如蓝色光线,机顶盒,电脑,游戏,等 你可以安装驱动里面的视频编辑器在电脑，这样就可以直接编辑你采集到的视频
高达1080P,免驱动，不需要电脑录制，直接即插即用。机器内置4GB RAM。任何时候都是可以录制采集的。支持Windos 7/8（32/64位），window vista（32/64位） 系统
1080P recording with one click,no PC required.You only simple insert one USB Flash disk to get it anywhere,anytime.support Windos 7/8（32/64 bit），window vista（32/64bit）
Product Description;
1080P recording with one click,no PC required.You only simple insert one USB Flash disk to get it anywhere,anytime.support Windos 7/8(32/64 bit),window vista(32/64bit);
HD Game Capture, HD video capture module, 1080P HDMI/YPbPr Recorder

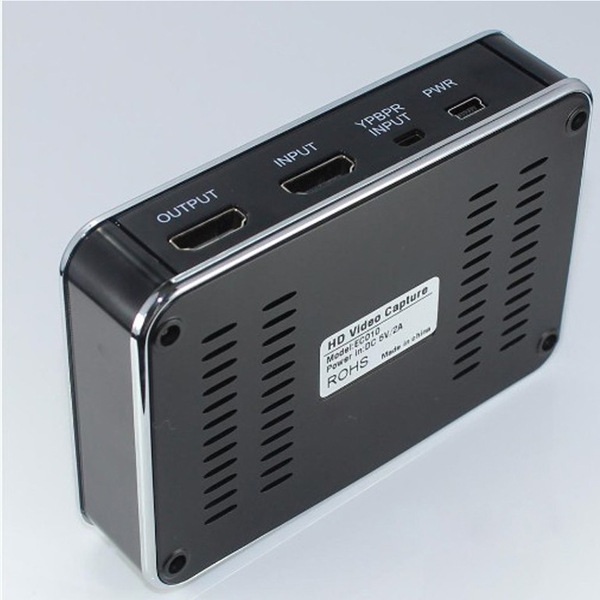

Overview:
HDMI/YPbPr Recorder is a box that records and streams your gameplay up to 1080p. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.
Ezcap280 HDMI/YPbPr Recorder provides the flexible connectivity with HDMI & Component inputs, which makes it applicable to all the mainstream gaming platforms, including Xbox 360 & One, PlayStation 3 & 4 Wii U. Even better.
Capture 1080P video through HDMI or YPBPR from game consoler ,STB,DVD or other video source, stand along, no PC required, Simply press the recorder button, save to USB flash drive or USB hard disk.
Features:
-One button record
- Stand along, no PC required
- Interface: USB host for USB Flash disk or USB hard disk
- Recording Format: H.264

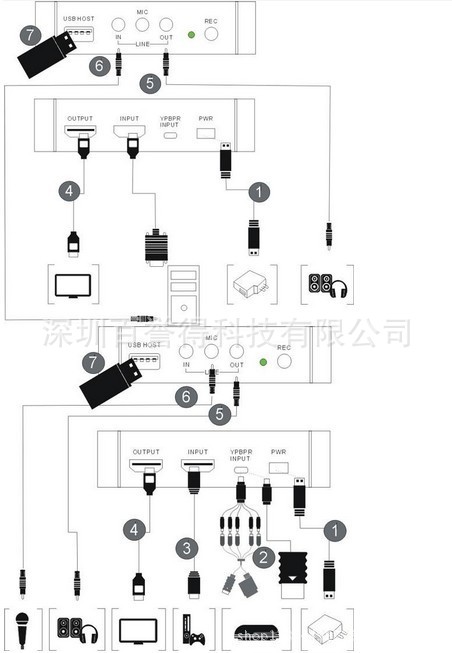

- With both HDMI and YPBPR input
Input: HDMI, or Component Video and Audio L/R, up to 1080P. Extral 3.5mm audio.
- Output: HDMI and USB host.
- With HDMI output pass-through for monitoring
- Power Supply: DC 5V/2A
- Dimension: 110 * 75 * 27 mm
- Weight: 135g
Specifications:
1, Interface: USB 2.0 Host
2, Video Input: Digital: HDMI
Analog: Component Video
3, Audio Input: Digital: HDMI
Analog: RCA L/R, 3.5mm microphone
4, Video Output: HDMI (Pass-through from Component and HDMI Input)
5, Audio Output: Digital: HDMI (Pass-through from HDMI Input)
Analog: 3.5mm Stereo (Pass-through from HDMI and 3.5mm Audio Input)
6, Applicable Connections with Mainstream Game Consoles:
HDMI: WiiU, Xbox 360, Xbox One, PS4
Component :WiiU, Xbox 360, PS3
7, Resolution:
Input/ Pass-through:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x
1080 (60p)
Capture:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x
1080 (30p)

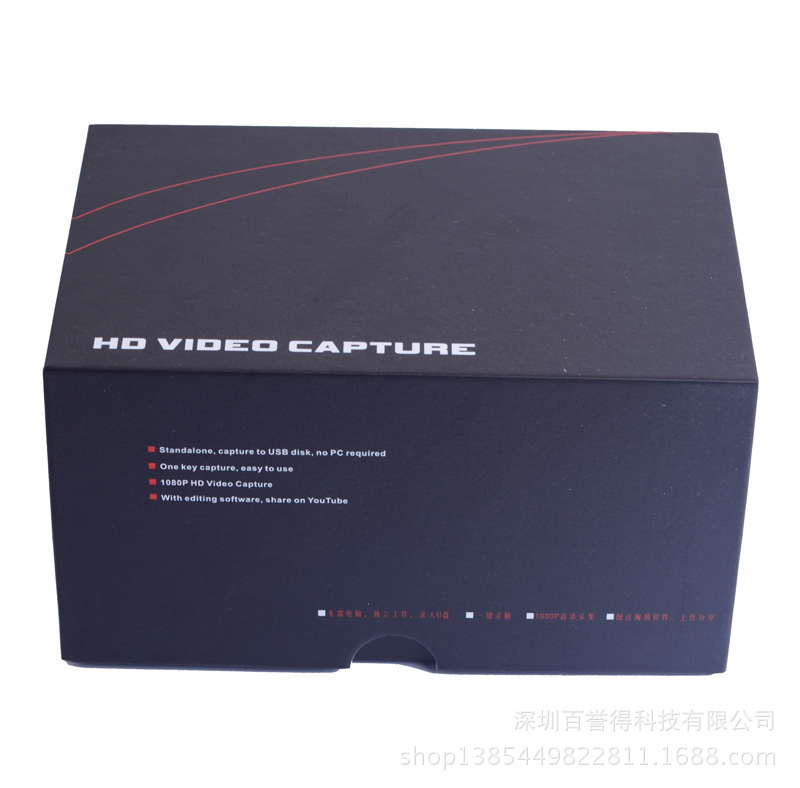

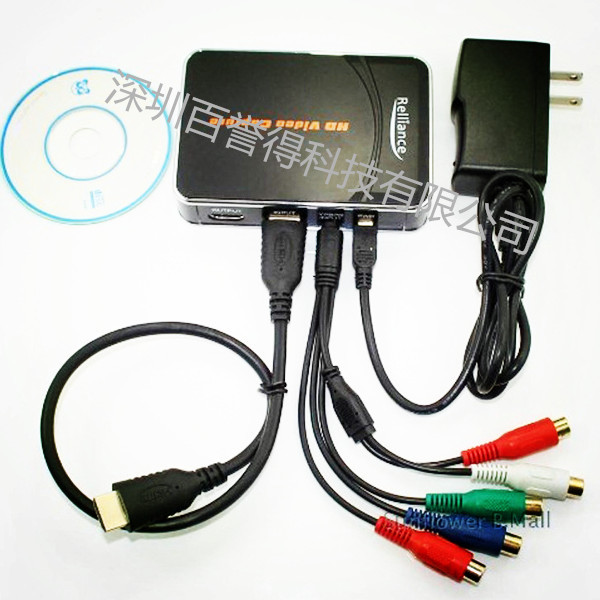

Package Contents:
- 1080P HDMI/YPbPr Recorder
- Component video and L/R audio Cable
- Power supply
- Manual

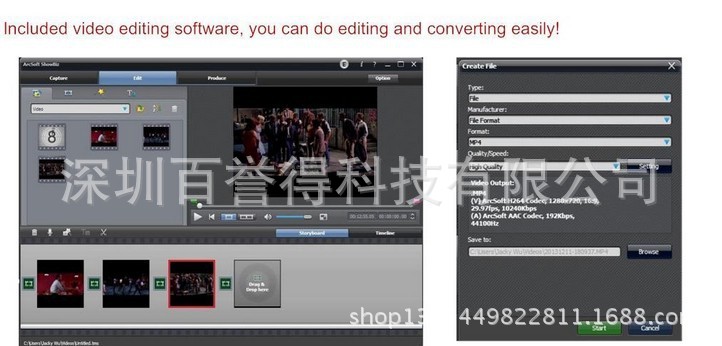

- Video editing software CD(Option)
