产品信息：
这款是升级版本，在色差或AV接口录入时支持麦克风输入 即可以边玩游戏边录制还可以边解说。可根据客户的国家配置相应的电源适配器~~~
即插即用HDMI高清游戏电影视频采集盒支持U盘/SD卡保存 分辨率1080P
视频输入可以是HDMI /色差（Ypbpr）/AV(CVBS)输入，3.5MM麦克风接口输入录制。
支持USB接的U盘和SD卡（最大支持64GB）
It supports HDMI/AV/Ypbpr Input and 1080P HD Video Recorded into USB Flash/HDD/SD cards.
New Selling Point : This unit support voiceover function when recording videos.
Two Colors optional : White or Black+Red, delivery based on stocks.
For PS4, if your PS4 don't have HDCP protection, it could be used to connect with this HDMI game capture for recording directly. If it's old version of ps4 with HDCP protection, buyer need a HDMI splitter to disable HDCP protection or need to make setup with PS4 firmware to disable the HDCP protection (We have introductions for PS4 as below).
If any further question or misunderstanding, you can check with us before order it.
.
附带视频编辑软件
| Connections | |||||||||
| Interface | USB 2.0 Host, SD Card | ||||||||
| Video Input | Digital: HDMI | ||||||||
| Analog: Component Video, Composite Video | |||||||||
| Audio Input | Digital: HDMI | ||||||||
| Analog: RCA L/R, 3.5mm MicroPhone In | |||||||||
| Note:Microphone without pass through fo HDMI input | |||||||||
| Video Output | Digital: HDMI (Pass-through from HDMI or Component or Composite Input) | ||||||||
| Audio Output | Digital: HDMI (Pass-through from HDMI or RCA L/R Input) | ||||||||
| Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input) | |||||||||
| Applicable Connections with Game Consoles | |||||||||
| HDMI | WiiU, Xbox 360, Xbox One, PS4 | ||||||||
| Component | WiiU, Xbox 360, PS3 | ||||||||
| Composite | WiiU, Xbox 360, PS3 | ||||||||
| Note: HDCP contents cannot be recorded. | |||||||||
| Hardware Extra | |||||||||
| Codec | Hardware MPEG4 encoder | ||||||||
| User Interface | On-board Hot Button for one-click recording | ||||||||
| LED indicator for working status | |||||||||
| Dimensions | 140(L) × 74(W) × 23(H) mm | ||||||||
| Weight | 115g | ||||||||
| Package Contents | |||||||||
| Device | HD Video Capture | ||||||||

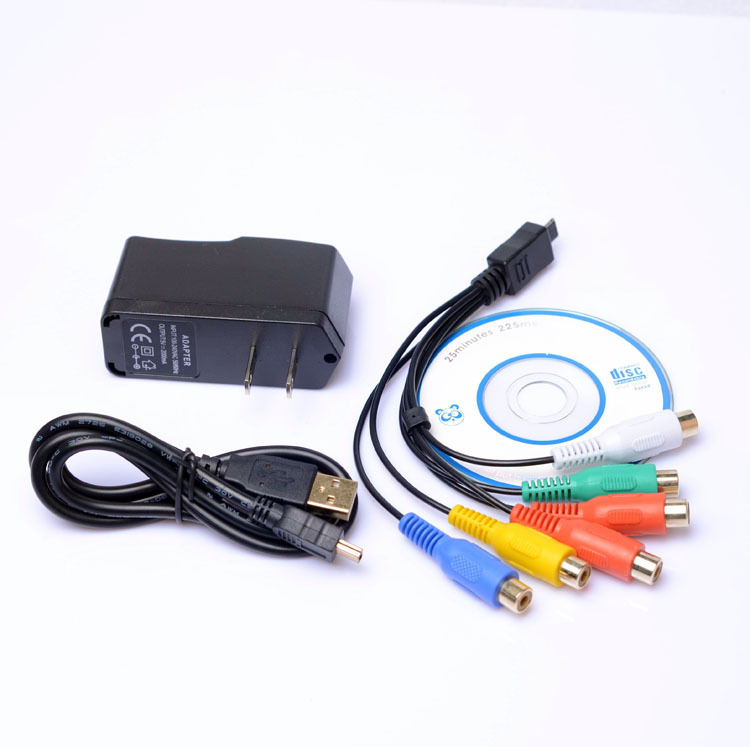

| Others | AV cable adapter, MINI USB Power Supply, Software CD, Manual | ||||||||
| Standards | |||||||||
| Storage Media | USB Flash Disk, Portable Hard Disk, SD Card | ||||||||
| Max Capacity: USB / 2T, SD / 64G | |||||||||
| Note:The exFAT format is not supported. | |||||||||
| Resolution | Input / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p) | ||||||||
| Capture: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p) | |||||||||
| Note:Upscaling is not supported. | |||||||||
| Record Format | Video: MP4, Audio: AAC Stereo | ||||||||
| Record Quality | Max: 18Mbps@1080P 30fps | ||||||||
| Record File | Max: 2GB / Per File, With RTC (Real Time Clock) | ||||||||
| Record Place | Max: 140MB / Minute, 8.4GB / Hour | ||||||||
| Power Supply | USB DC 5V / 2A | ||||||||
| Applications | |||||||||
| Software | Arcsoft Showbiz | ||||||||
| Video Editing | Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes … | ||||||||
| Video Export | Upload to YouTube | ||||||||
| Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox | |||||||||
| File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) … | |||||||||
| Operating System | Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit) | ||||||||
| CPU | Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz | ||||||||
| Memory | 4 GB RAM | ||||||||
| Graphics Card | VGA card with support for DirectX 10.0c or above | ||||||||
