1、 | 产品名称/Product Name: | | | | | | |

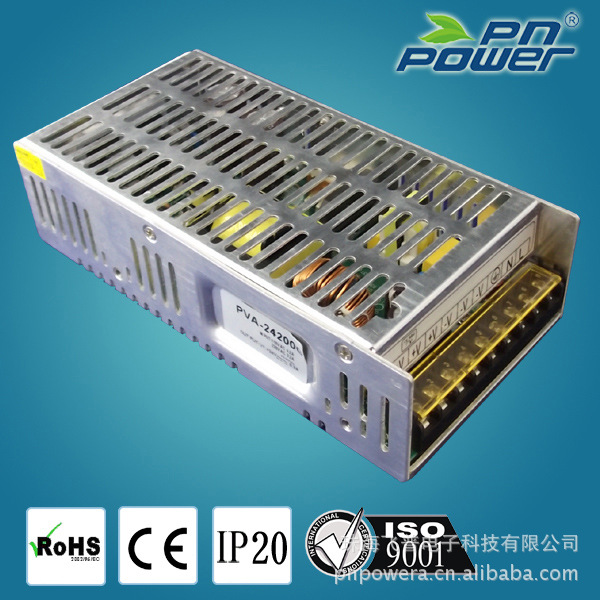

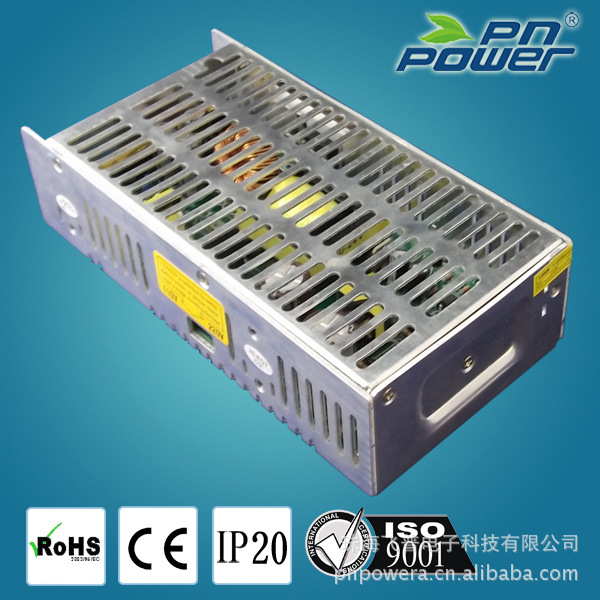

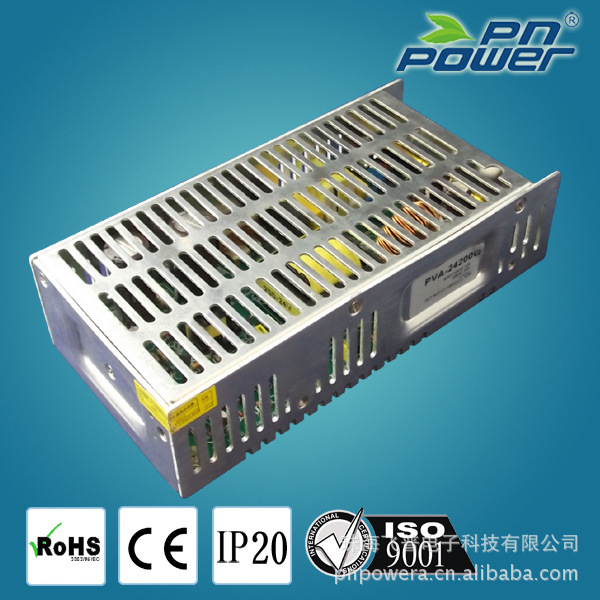

| LED恒压电源/Constant Voltage LED power supply PVA-12200G | | | | |
2、 | 产品输入规格/Product Input Specifications | | | | | |
| 输 入 电 压 Input Voltage | 输 入 频 率 Input Frequency | 输 入 电 流 Input Current | 功 率 因 数 Power Factor | | 浪 涌 230V Inrush Current | 谐波总量 Total Syntonic Wave | |
| 110/220 | 50-60Hz | 25.4 | 0.5-0.6 | | | | |
3、 | 产品输出规格/Product Ouput Specifications | | | | | |
| 输 出 电 压 Output Voltage | 输 出 最 大 功 率 Max. Output Power | 输 出 电 流 Output Current | 效 率 Efficiency | | 输 出 纹 波 Output Ripple | 负 载 调 整 率 Load Regulation | |
| 12±5%V | 200 | 16.5 | 82%/220V | | ≦150MV | ≦±10% | |
4、 | 保护功能/Protection Function | | | | | | |
| 过流保护over current protection:Auto-recovery | | | | | |
5、 | 环境规格/Environmental Specifications | | | | | |
| 操 作 温 度 Operation Temp. | 存 储 温 度 Store Temp. | 温 升 Raise Temp. | 操 作 湿 度 Operation Humidity | 使 用 场 地 Using Field | |
| -25~55℃ | -40~80℃ | ≤25℃ | 5-95%RH | 禁止强磁场/Forbidding Strong Magnetic Field | | | |
6、 | 参照标准/Reference Srandards | | | | | | |
| 6.1、 安全标准/Safety Standards:GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD) certificate | | |
| 6.2、 EMC标准/EMC Standard:EN55015,EN61000,EN61547 | | | | |
7、 | 产品尺寸、外形/ Size & Figure | | | | | | |
| 7.1、产品尺寸/Size:200*110*50MM | | | | | | |
