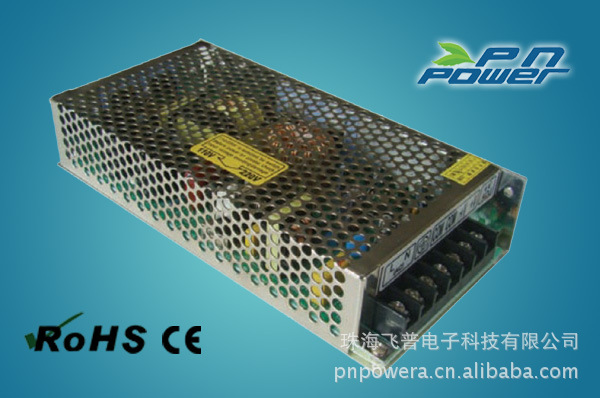

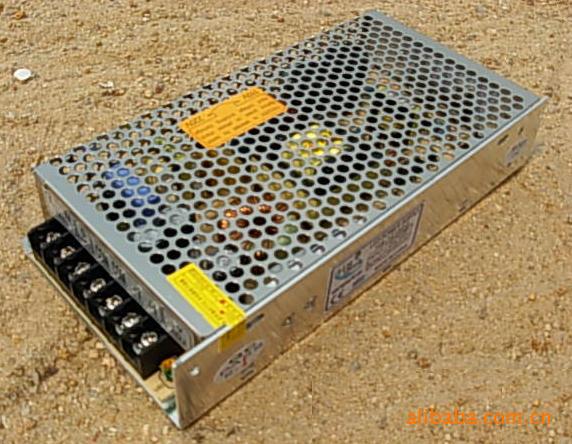

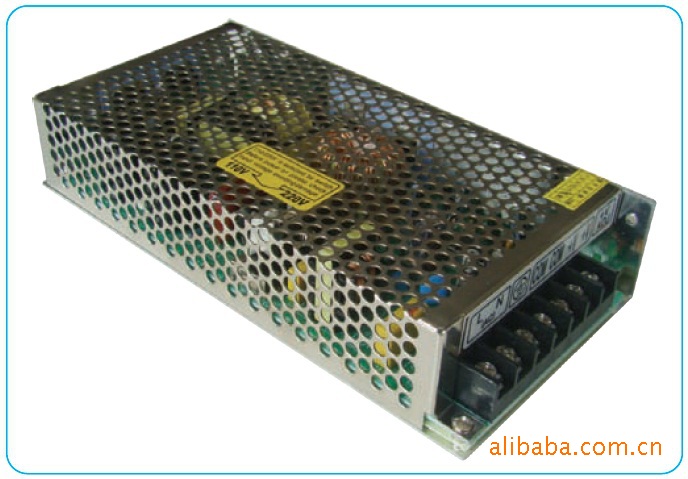

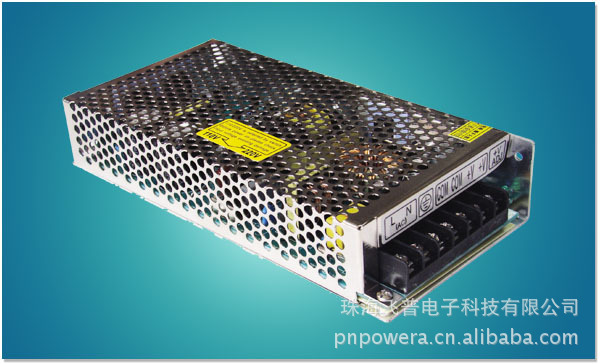

1、 | 产品名称/Product Name: | | | | | | | LED恒压电源/Constant Voltage LED power supply PVA-24150G | | | | 2、 | 产品输入规格/Product Input Specifications | | | | | | 输 入 电 压 Input Voltage | 输 入 频 率 Input Frequency | 输 入 电 流 Input Current | 功 率 因 数 Power Factor | 7, 1, 33, 0, 8, 1, 33, 25 8, 1, 33, 0, 9, 1, 33, 25 6, 1, 33, 0, 7, 1, 33, 25 | 浪 涌 230V Inrush Current | 谐波总量 Total Syntonic Wave | | 110/240 | 40-60Hz | 560-890MA | 0.5-0.6 | | | | 3、 | 产品输出规格/Product Output Specifications | | | | | | 输 出 电 压 Output Voltage | 输 出 最 大 功 率 Max. Output Power | 输 出 电 流 Output Current | 效 率 Efficiency | | 输 出 纹 波 Output Ripple | 负 载 调 整 率 Load Regulation | | 24±5% | 150 | 6.25 | 87%/100V | | | N/A | 4、 | 保护功能/Protection Function | | | | | | | 过流over current protection:Auto-recovery | | | | | 5、 | 环境规格/Environmental Specifications | | | | | | 操 作 温 度 Operation Temp. | 存 储 温 度 Store Temp. | 温 升 Raise Temp. | 操 作 湿 度 Operation Humidity | 使 用 场 地Using Field | | -25~50℃ | -40~80℃ | ≤25℃ | 5-95%RH | 禁止强磁场//Forbidding Strong Magnetic Field | 6、 | 参照标准/Reference Srandards | | | | | | | 6.1、 安全标准/Safety Standards:GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD) certificate | | | 6.2、 EMC标准/EMC Standard:EN55015,EN61000,EN61547 | | | | 7、 | 产品尺寸、外形/ Size & Figure | | | | | | | 7.1、产品尺寸/Size:199*98*38MM | | | | | |
8、 | 包装规格/Packing Specifications | | | | | | | 单 个 重 量 Unit Weight | 包 装 尺 寸 Packing Size | 包 装 数 量 Packing Qty. | 包 装 重 量 Packing Weight | 包 装 方 式 Packing Method | | | | 650g/pcs | 43.8*33.5*25 | 30pcs/Box | 21Kg/Box | | | | 9、 | 产品应用/Product Application | | | | | | | 产品适用于LED串并结合的护栏管、投光灯、发光字、洗墙灯、路灯等 | | | | The product designed to drive LED guardrail lamp、 flood light、 light word 、street lamp etc.For LEDs series-parallel. |
|
